Checkpoints
Checkpoints are 3D visual markers used for races, missions, and navigation. They are
larger and more visible than standard markers. Use CreateCheckpoint to place them.
Create checkpoints only while players need them, retain the returned handle, and
delete each checkpoint when the route or activity finishes.
Quick Usage
-- Create a checkpoint
local checkpoint = CreateCheckpoint(
2, -- Type (thick chevron up)
x1, y1, z1, -- Position
x2, y2, z2, -- Point towards (next checkpoint)
5.0, -- Radius
255, 255, 0, 100, -- RGBA colour
0 -- Reserved
)
-- Delete when done
DeleteCheckpoint(checkpoint)// JavaScript equivalent
const checkpoint = CreateCheckpoint(2, x1, y1, z1, x2, y2, z2, 5.0, 255, 255, 0, 100, 0);
DeleteCheckpoint(checkpoint);All Checkpoint Types
| ID | Name | Description |
|---|---|---|
| CylinderSingleArrow | Cylinder with single arrow | |

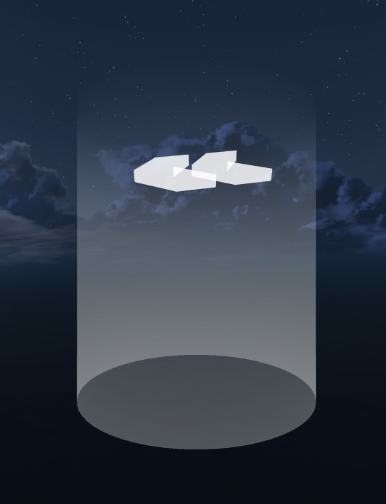

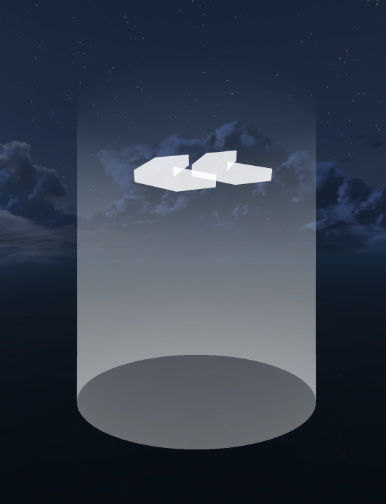

| CylinderDoubleArrow | Cylinder with double arrow | |

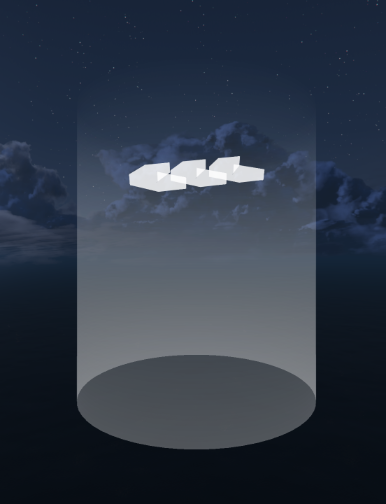

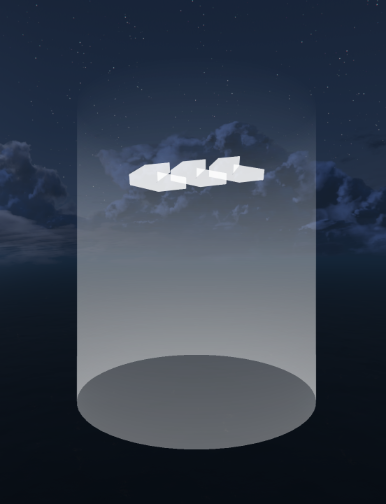

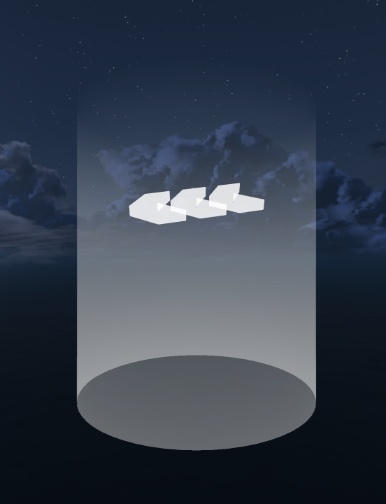

| CylinderTripleArrow | Cylinder with triple arrow | |

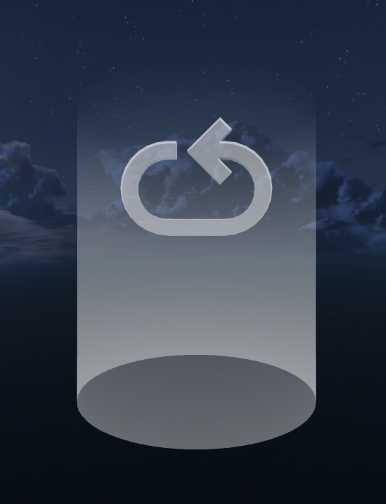

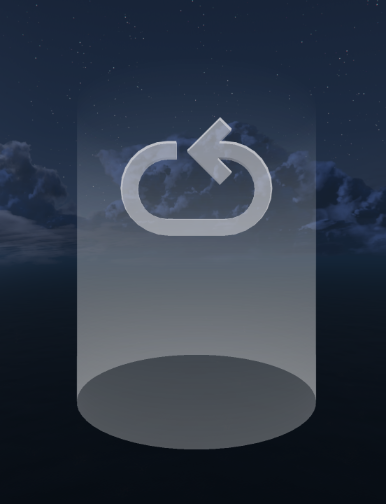

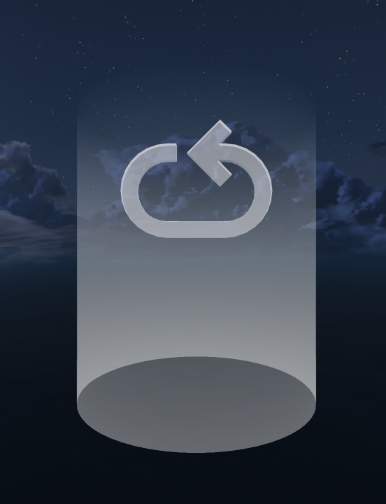

| CylinderCycleArrow | Cylinder with cycling arrow | |

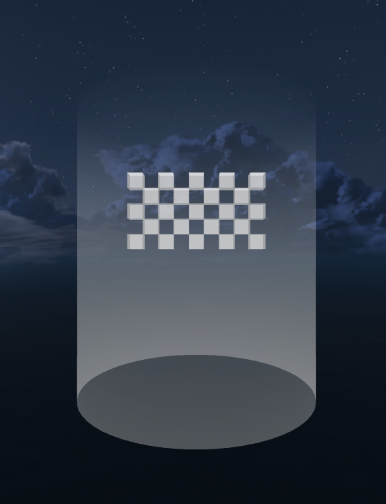

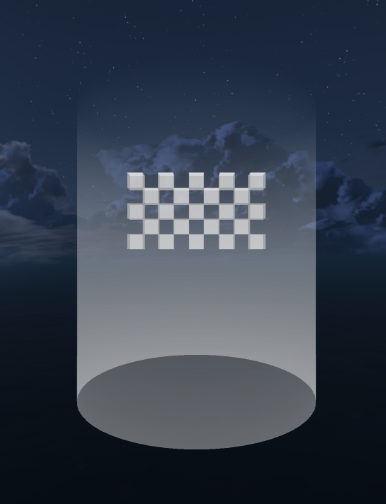

| CylinderCheckerboard | Cylinder with checkerboard | |

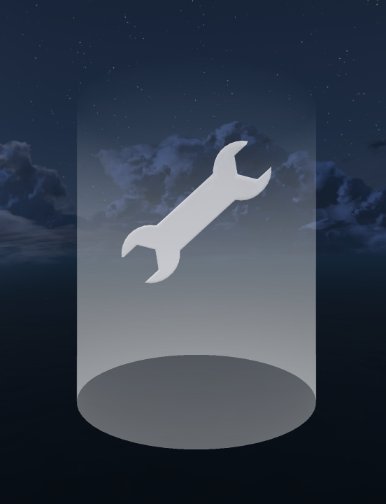

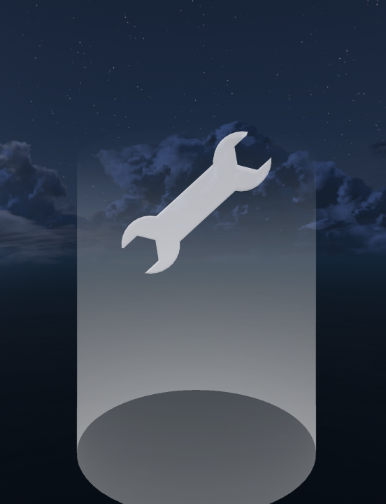

| CylinderWrench | Cylinder with wrench icon | |

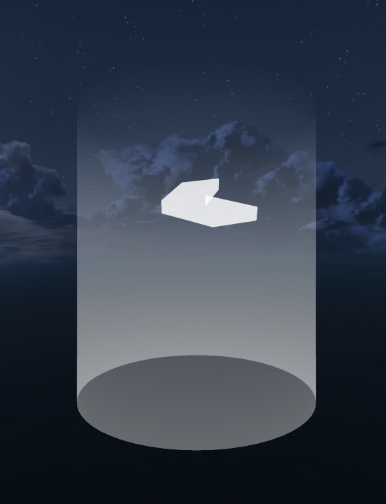

| CylinderSingleArrow2 | Cylinder with single arrow variant 2 | |

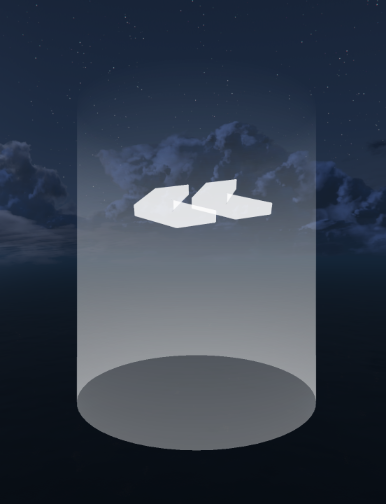

| CylinderDoubleArrow2 | Cylinder with double arrow variant 2 | |
| CylinderTripleArrow2 | Cylinder with triple arrow variant 2 | |
| CylinderCycleArrow2 | Cylinder with cycling arrow variant 2 | |

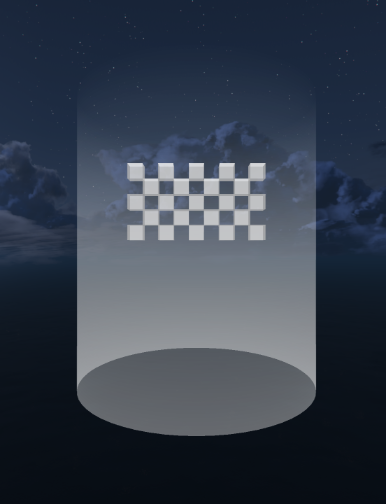

| CylinderCheckerboard2 | Cylinder with checkerboard variant 2 | |
| CylinderWrench2 | Cylinder with wrench icon variant 2 | |

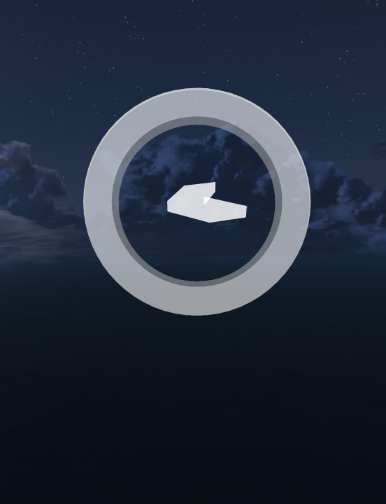

| RingSingleArrow | Ring with single arrow | |

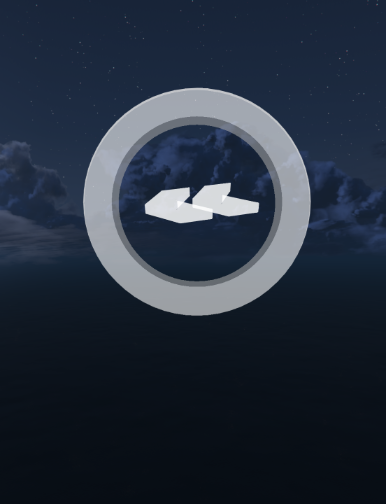

| RingDoubleArrow | Ring with double arrow | |

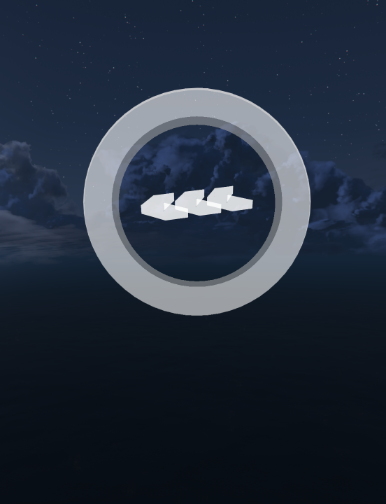

| RingTripleArrow | Ring with triple arrow | |

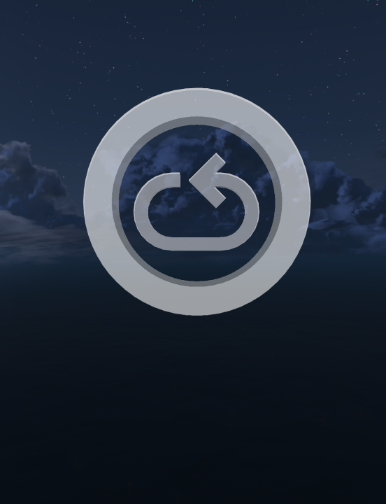

| RingCycleArrow | Ring with cycling arrow | |

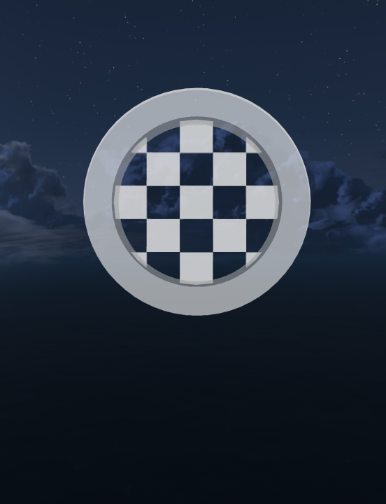

| RingCheckerboard | Ring with checkerboard | |

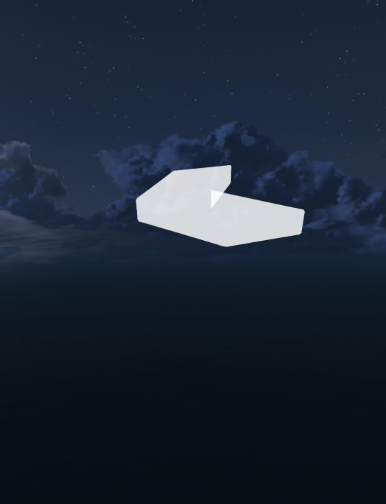

| SingleArrow | Single arrow (no cylinder) | |

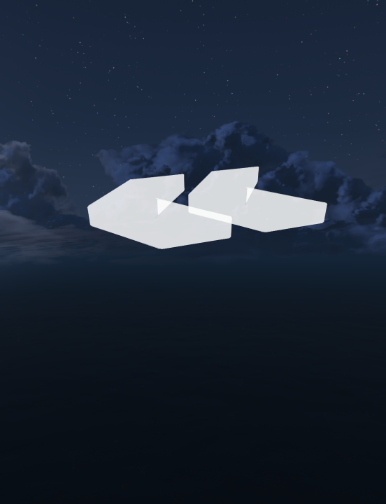

| DoubleArrow | Double arrow (no cylinder) | |

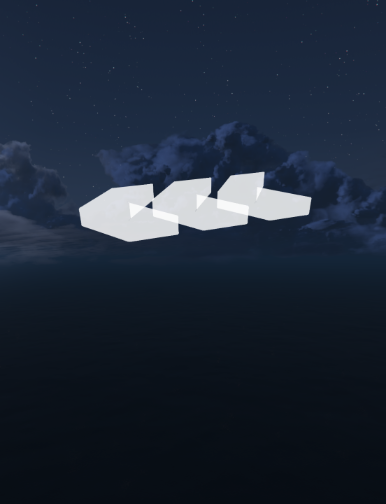

| TripleArrow | Triple arrow (no cylinder) | |

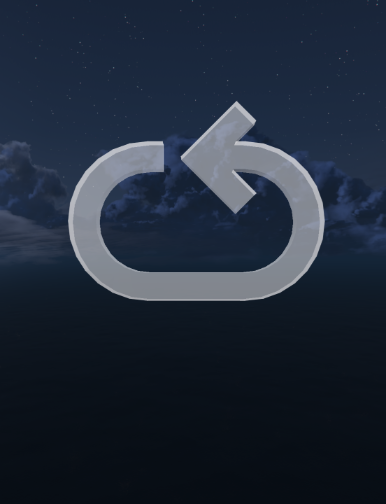

| CycleArrow | Cycling arrow (no cylinder) | |

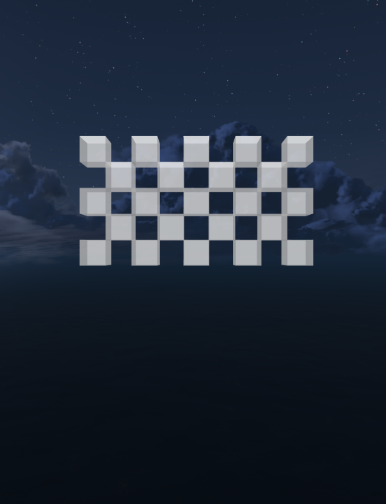

| Checkerboard | Checkerboard (no cylinder) | |

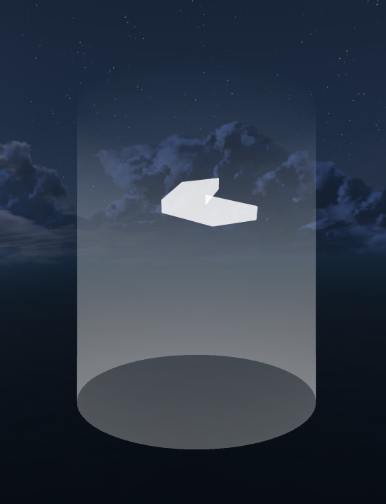

| CylinderSingleArrow3 | Cylinder single arrow variant 3 | |
| CylinderDoubleArrow3 | Cylinder double arrow variant 3 | |
| CylinderTripleArrow3 | Cylinder triple arrow variant 3 | |

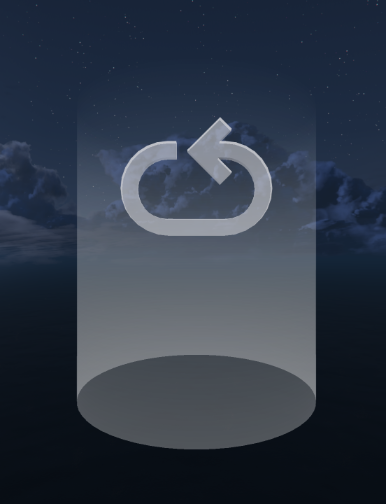

| CylinderCycleArrow3 | Cylinder cycling arrow variant 3 | |
| CylinderCheckerboard3 | Cylinder checkerboard variant 3 | |
| CylinderSingleArrow4 | Small cylinder single arrow | |
| CylinderDoubleArrow4 | Small cylinder double arrow | |
| CylinderTripleArrow4 | Small cylinder triple arrow | |
| CylinderCycleArrow4 | Small cylinder cycling arrow | |
| CylinderCheckerboard4 | Small cylinder checkerboard | |
| CylinderSingleArrow5 | Cylinder with single arrow variant 5 | |
| CylinderDoubleArrow5 | Cylinder with double arrow variant 5 | |
| CylinderTripleArrow5 | Cylinder with triple arrow variant 5 | |
| CylinderCycleArrow5 | Cylinder with cycling arrow variant 5 | |
| CylinderCheckerboard5 | Cylinder with checkerboard variant 5 | |
| RingSingleArrow3 | Ring with single arrow variant 3 | |
| RingDoubleArrow3 | Ring with double arrow variant 3 | |
| RingTripleArrow3 | Ring with triple arrow variant 3 | |
| RingCycleArrow3 | Ring with cycling arrow variant 3 | |
| RingCheckerboard3 | Ring with checkerboard variant 3 | |
| Cylinder | Plain cylinder | |
| Cylinder1 | Plain cylinder variant | |
| Cylinder2 | Plain cylinder variant 2 | |
| RingSingleArrow2 | Ring with arrow | |

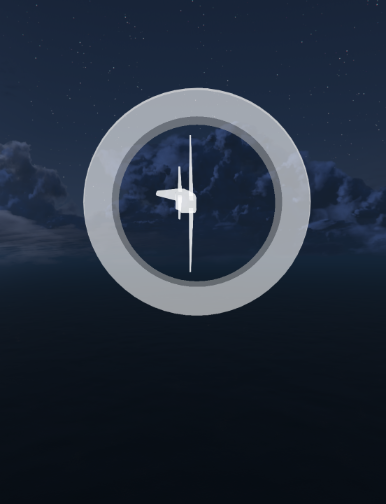

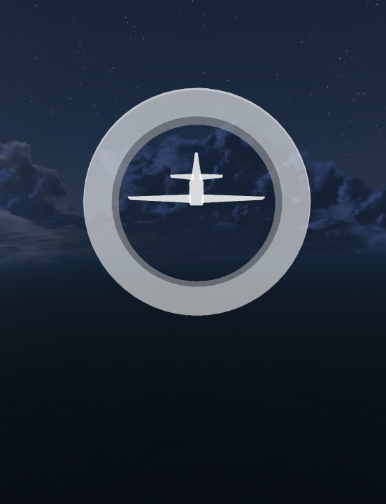

| RingPlane | Ring for plane checkpoint | |

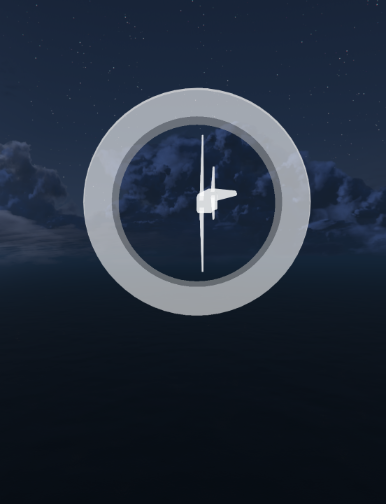

| RingChopper | Ring for helicopter checkpoint |
